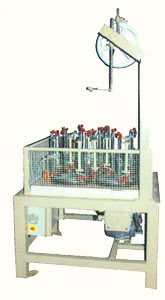

Wire Braiding Machine (Vertical) |
| Number of carriers |
8 to 96 & more |
| Bobbin dimensions |
 75mm x 150mm |
| Motor power (As per model selection) |
1.0 HP to 15 HP |
| |
|
- Horngears with bearing for smooth operation.
- Spring loaded carriers in two pieces.
- Optional electric panel for speed variation from 0 rpm - 150 rpm
& also available to get different picks per cm./inch.
- Braid knotting tension of the carrier - 3.2 kgs to 13.0 kgs .
|
|
| |
|
| |
 |

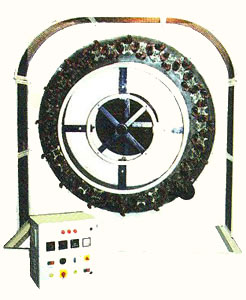

Wire Braiding Machine (Horizontal)
| Number of carriers |
12 to 96 & more |
| Bobbin dimensions |
50mm x 150mm, |
| |
70mm x 160mm |
| Motor power (As per model selection) |
1.0 HP to 20 HP |
| |
|
- Horngears with bearing for smooth operation.
- Spring loaded carriers in two pieces.
- Optional electric panel for speed variation from 0 rpm - 150 rpm
& also available to get different picks per cm./inch.
- Double Deck option is also available.
- AC frequency drive available for speed variation of the machines.
- Braid knotting tension of the carrier - 3.2 kgs to 13.0 kgs .
|
|
| |
| |
|
| |
|

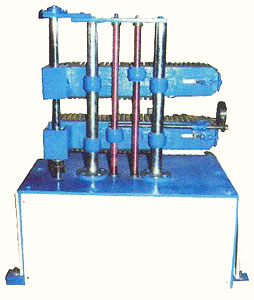

Take off for Horizontal Braiding Machine |
|
| Belt Width |
4",6" & 8" Belt |
| |
|
- D.C. drive / AC frequency drive( Optional) for the line speed variation.
- Pneumatic / Hydraulic adjustment of jaws is also available
accoriding to sizes of braids/briaided product.
|
| |
| |
| |
| |
| |
| |
| |
|
 |
| |
|
