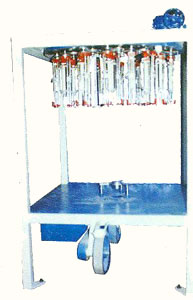

| 3 Track Interlocking Machine |
| Number of carriers |
18 |
| Bobbin dimensions |
 58mm x 180mm |
| |
70mm x 225mm |
| Motor power (As per model selection) |
2.0 HP to 5.0 HP |
| |
|
-
Horngears with bearing for smooth operation.
-
Spring loaded carriers in two pieces.
-
Optional electric panel for speed variation from 0 rpm - 220 rpm
& also available to get different picks per cm./inch.
Machine are available in vertical & inverted type. |
|
| |
|

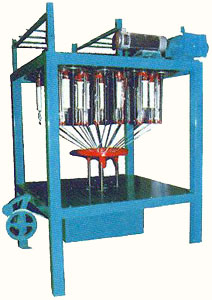

| 4 Track Interlocking Machine |
|
| Number of carriers |
24,32,48 |
| Bobbin dimensions |
58mm x 180mm |
| |
70mm x 225mm |
| Horngear speed |
150 rpm...(max.) |
| |
|
-
Horngears with bearing for smooth operation.
-
Spring loaded carriers in two pieces.
-
Optional electric panel for speed variation from 0 rpm - 220 rpm
& also available to get different picks per cm./inch.
- Machine are available in vertical & inverted type.
|
| |
| |
|
 |
| |
|

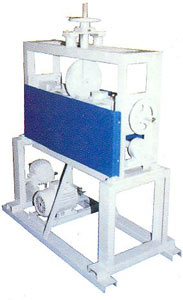

Squaring Machine |
 |
-
Squaring machines are available for the perfect squaring of product.
-
We also supply different size 4 plates with the machine for sizing.
-
Machine construction with four moving plates.
- Optional electric panel for speed variation from 0 rpm - 220 rpm
- Machine squaring capacity up to 38 mm & more.
- Machine moving plates are available in M.S. & S.S.(Optional).
|
| |
| |
| |
| |
| |
| |
| |
|
| |
|
